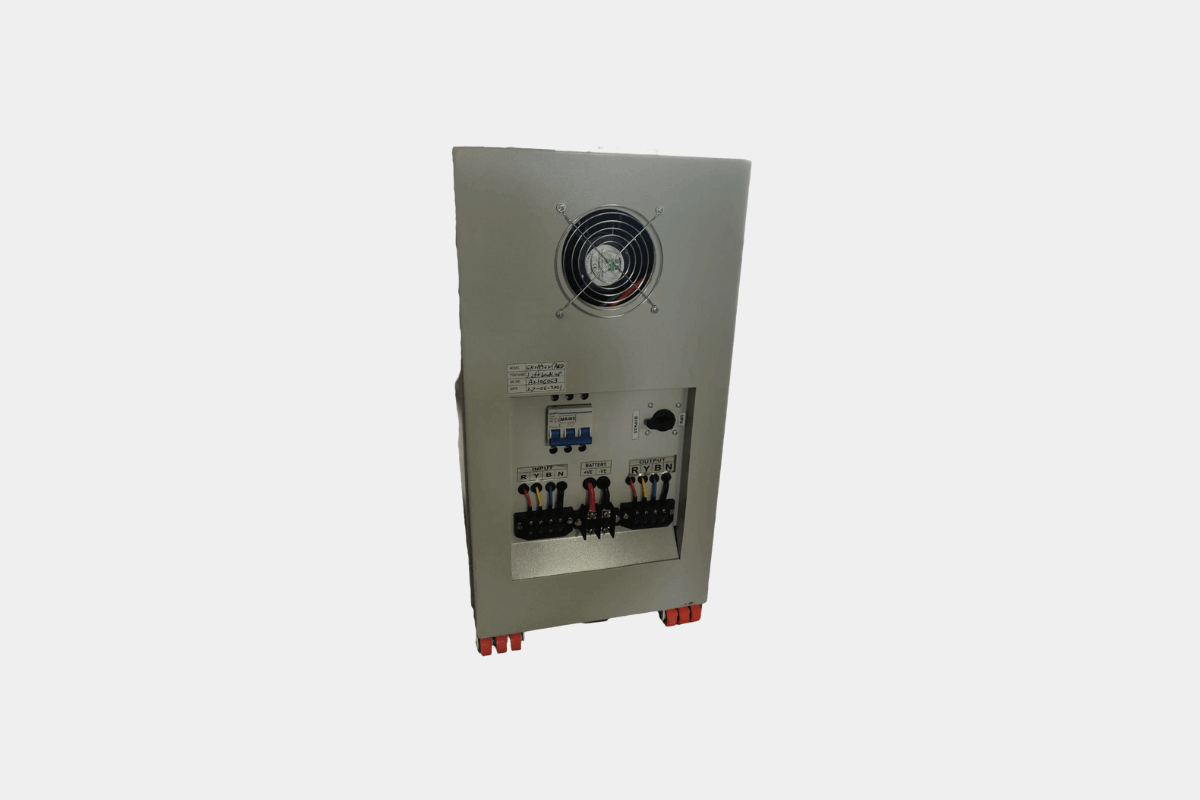

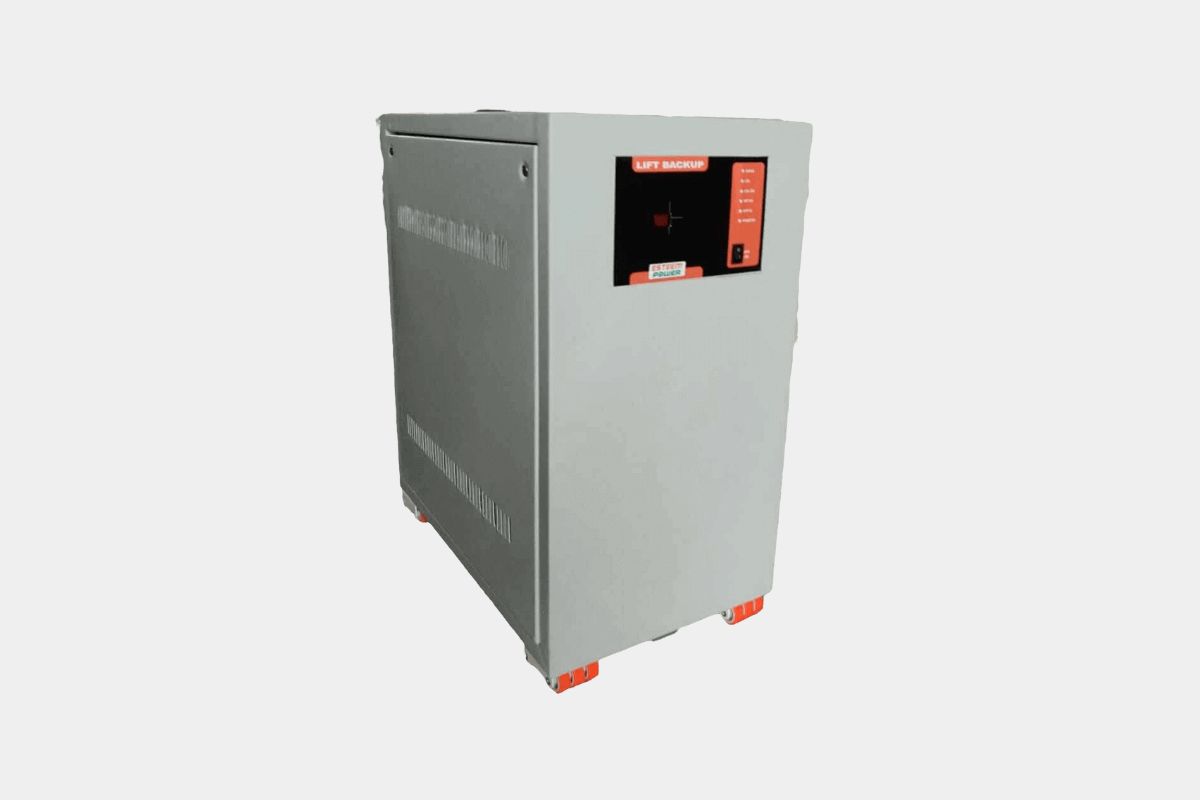

Lift Backup

Lift Inverter Technical Details:

Technology IGBT, High-Frequency PWM
Output Voltage 400V / 415V AC Three Phase, Balanced*
Voltage Regulation ±1% for DC I/P Variation & O/P Load Variation
Frequency 50Hz 0.5Hz
Waveform PWM Sine Wave
Harmonic Distortion Less Than 3%
Inverter Efficiency >93% for 360 VDC
Power Factor >90%for 180 VDC 0.8
Overload 105% Continuously, 300% for 60 sec
Crest Factor 4:1
Transient Response 4% Under Full Load Change and Corrected Within 60msec
Phase Displacement 120° ±1°
Audible Noise Less than 45 dB at 1 Meter
