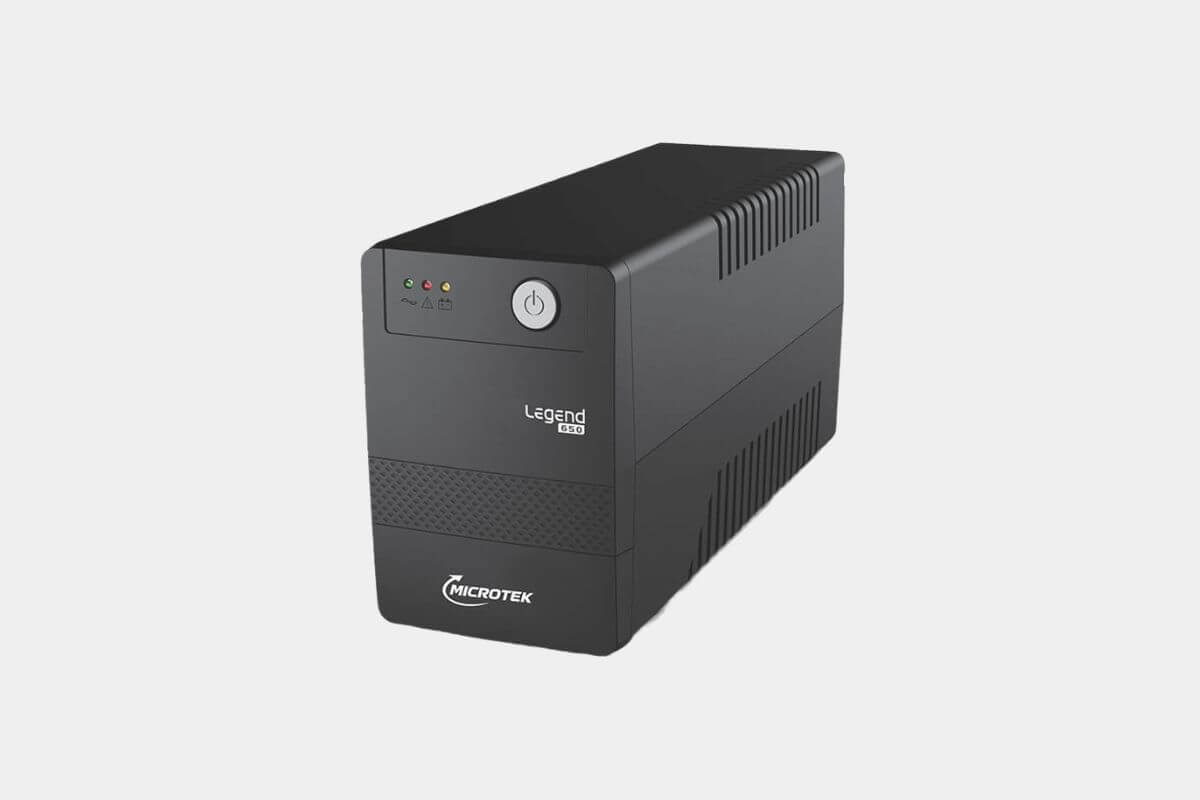

Line Interactive UPS
Line Interactive UPS - Image 2

Line Interactive UPS

TOTAL PROTECTION FOR YOUR COMPUTERS
Legend 1000 is a microprocessor-based Line Interactive UPS that gives Optimum Reliability. It has Boost and Buck AVR for ultimate voltage stabilization which ensures protection against overload, discharge, and overcharge.

FEATURES

  • Wide Input Range: 140V~300 V AC
  • Auto restart while AC is recovering
  • Generator Compatibility Option
  • Top Grade Micro Processor based Line Interactive UPS – Optimum Reliability.
  • Boost and Buck AVR – Ultimate Voltage Stabilization.
  • Protection against Overload, Discharge/ Overcharge.
  • Wide INPUT Range 140V~300V AC.
  • Auto Restart while AC is recovering.
  • Generator Compatibility Option



Category:

TECHNICAL SPECIFICATIONS

MODEL UPS LEGEND 1000
CAPACITY 1000VA / 600W
INPUT
 Voltage Range 140V~300V AC
Frequency 50Hz+10%
OUTPUT
 Voltage (Batt. Mode) 230V AC Nominal
Frequency (Batt.Mode) 50Hz+1Hz
Waveform (Batt. Mode) Modified Sinewave
Transfer Time Typical 4~8ms
Rating 1000VA(Max.)
BATTERY
 Battery Type SMF (Sealed Maintenance Free)
DC V/ AH/Nos. 12V / 7AH x 2 Batteries
Recharge Time(Typ.) 6 Hrs to 90% after
complete discharge
ENVIRONMENT: 0°~40°C, 0~90% RH Non-Condensing
Noise Level <45dB
PHYSICAL
 Dimensions(mm) 315(L) x 130(W) x 183(H)
Weight (Kgs.) Net: 8.2Kgs. Gross: 8.6Kgs.
TECHNICAL FEATURES
 Auto Switch Off in Battery Low is In-Built.
Off-Mode Charging & Overload Protection are In-Built.

*Above specifications are measured under computer load.

*Specifications are subject to change without notice.
