| Parameter | Specs |
| Rating | SkVA-100kVA(3Phase to 3Phase) |
| SkVA-60kVA (3 Phase tolPhase) | |
| Input voltage Range | 390/415V (+20%, 30%) |
| Optional Voltage Range also available | |
| Input Frequency | 47-53Hz |
| Insulation Resistance | SOOmeg ohm at SOOV |
| Dielectric Strength | 2.SkV for 1minutes |
| leakage Current | Less than 25 Micro Amps |
| Output Voltage | Same as input {or) customized output voltage |
| Voltage Ratio | 1:1/*0ther Ratios Optional |
| – Winding |
Delta Star for 3Phase I •other Connections Optional |
| Winding Material is enameled Al or enameled FG Al/*Copper winding is available if asked | |
| Protection | MCB / MCCBs |
| Normal Mode Noise | <60dB |
| Ambient Temperature | O to 45 Deg. C |
| Humidity – |
Upto 95% RH |
| Shield | Electrostatic Shield provided |
| Type | Indoor,Floor mounting |
| Environment | Indoor/Industrial Use |
| Cooling | Natural Air Cooling |

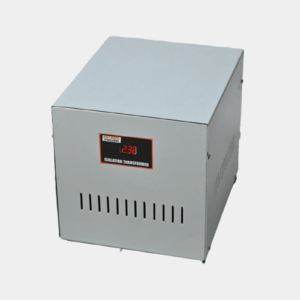

Isolation Transformer

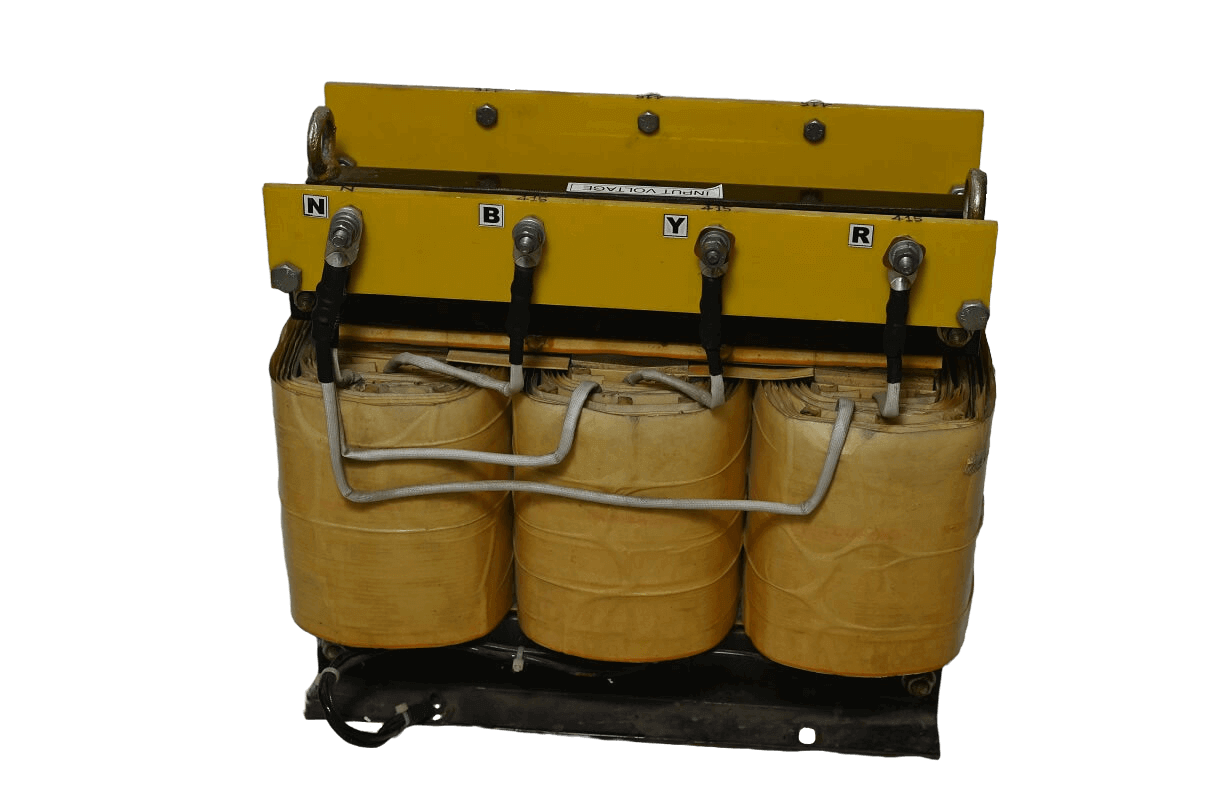

Three Phase Transformer
Shield: Electrostatic Shield provided
Type: Indoor, Floor mounting
Environment: Indoor/Industrial Use
Cooling: Natural Air Cooling
